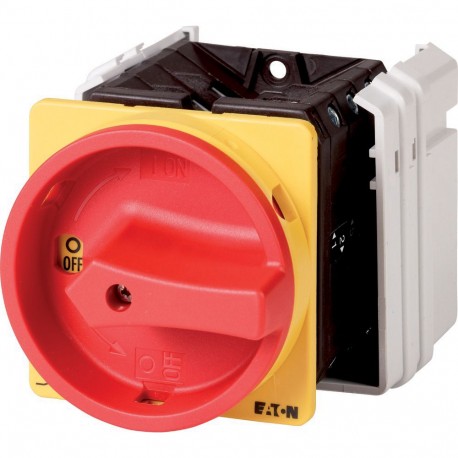

T5-3-8342/EA/SVB 096383 Y7-96383 EATON ELECTRIC Main switch, 6 pole, 100 A, Emergency-Stop function, 90 °, L..
T5-3-8342/EA/SVB
096383
Y7-96383
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller main switch with emergency stop functionality provides reliable circuit interruption and operator safety across complex industrial machinery. These multi-pole rotary switches are built to handle rigorous switching duties in factory automation environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: No
- Version as emergency stop installation: Yes
- Version as reversing switch: No
- Number of switches: 1
- Rated operating voltage: 690 V
- Rated permanent current Iu: 100 A
- Rated permanent current at AC-21, 400 V: 100 A
- Rated operation power at AC-3, 400 V: 30 kW
- Rated short-time withstand current lcw: 1.7 kA
- Rated operation power at AC-23, 400 V: 55 kW
- Switching power at 400 V: 55 kW
- Conditioned rated short-circuit current Iq: 2 kA
- Number of poles: 6
- Motor drive optional: No
More info
▲General specifications
IEC/EN 60947
VDE 0660
IEC/EN 60204
