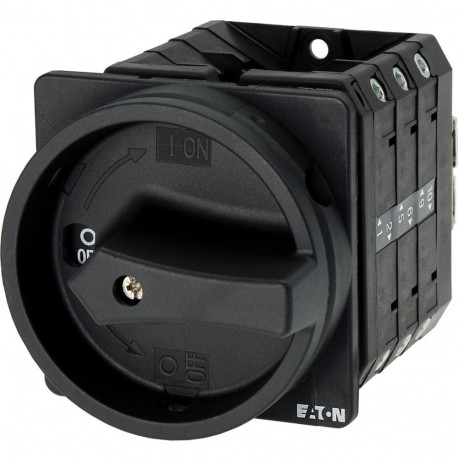

EATON - MOELLER T5B-3-8342/EA/SVB-SW T5B-3-8342/EA/SVB-SW 092307 Y7-92307 EATON ELECTRIC Main switch, 6 pole, 63 A, STOP function, 90 °, Lockable.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-3-8342/EA/SVB-SW 092307 Y7-92307 EATON ELECTRIC Main switch, 6 pole, 63 A, STOP function, 90 °, Lockable..

T5B-3-8342/EA/SVB-SW

092307

Y7-92307

EATON - MOELLER

1 Pcs.

Main switch, 6 pole, 63 A, STOP function, 90 °, Lockable in the 0 (Off) position, flush mounting General Switch 6 poles 63 A 90° Flush mount Handle Eaton Moeller® series T5B Main switch, T5B, 63 A, flush mounting, 3 contact unit(s), 6 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5B, Stop Function: STOP function, With black rotary handle and locking ring, 6 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5B-3-8342/EA/SVB-SW is a lockable 6-pole main switch incorporating a dedicated STOP function for industrial safety compliance. These heavy-duty disconnect switches allow technicians to lock out complex multi-circuit equipment securely during repair operations.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 6
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Main switch
Catalog Number
092307
Model Code
T5B-3-8342/EA/SVB-SW
EAN
4015080923077
Product Length/Depth
156 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.788 kg
Certifications
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CE
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL
IEC/EN 60204
UL Category Control No.: NLRV
VDE 0660
UL 60947-4-1
IEC/EN 60947
UL File No.: E36332
CSA
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
