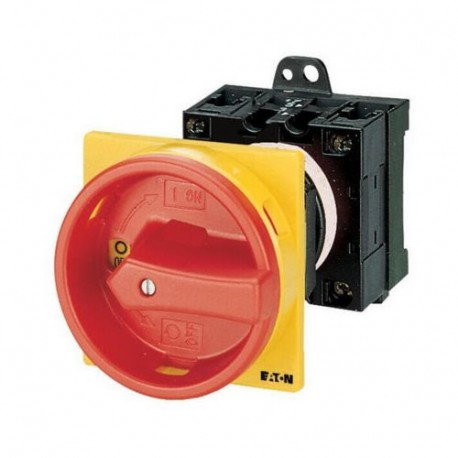

EATON - MOELLER T0-3-8342/V/SVB T0-3-8342/V/SVB 034128 Y7-34128 EATON ELECTRIC Main switch, 6 pole, 20 A, Emergency-Stop function, 90 °, Loc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8342/V/SVB 034128 Y7-34128 EATON ELECTRIC Main switch, 6 pole, 20 A, Emergency-Stop function, 90 °, Loc..

T0-3-8342/V/SVB

034128

Y7-34128

EATON - MOELLER

1 Pcs.

Main switch, 6 pole, 20 A, Emergency-Stop function, 90 °, Lockable in the 0 (Off) position, rear mounting General Switch 6 poles 20 A 90° Bottom panel mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, rear mounting, 3 contact unit(s), 6 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Eaton Moeller, the T0-3-8342/V/SVB main switch functions as a robust disconnecting device used in industrial control panels to safely isolate circuits. These six-pole devices feature emergency-stop capabilities and lockable handles to protect personnel during maintenance. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-3-8342/V/SVB
  • Catalogue code: 034128
  • Catalogue title: T0-3-8342/V/SVB 034128 Y7-34128 EATON ELECTRIC Main switch, 6 pole, 20 A, Emergency-Stop function, 90 °, Loc..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Main switch Catalog Number 034128 Model Code T0-3-8342/V/SVB EAN 4015080341284 Product Length/Depth 137 mm Product Height 74 mm Product Width 65 mm Product Wei
  • Manufacturer summary: Main switch, 6 pole, 20 A, Emergency-Stop function, 90 °, Lockable in the 0 (Off) position, rear mounting General Switch 6 poles 20 A 90° Bottom panel mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, rear mou

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
034128
Model Code
T0-3-8342/V/SVB
EAN
4015080341284
Product Length/Depth
137 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.158 kg
Certifications
CSA-C22.2 No. 94
CSA
IEC/EN 60204
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL File No.: E36332
VDE 0660
IEC/EN 60947-3
UL
UL Category Control No.: NLRV
UL 60947-4-1
CSA File No.: 012528
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
