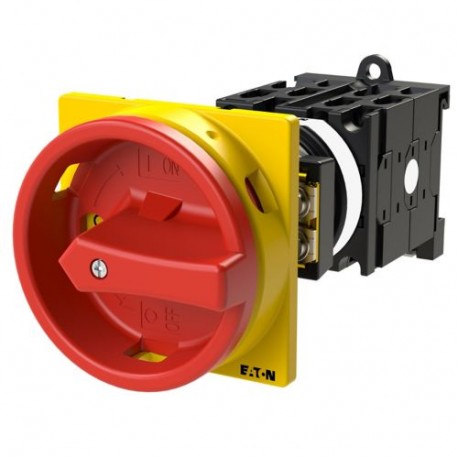

EATON - MOELLER T0-4-15700/V/SVB T0-4-15700/V/SVB 008241 Y7-8241 EATON ELECTRIC Main switch, 6 pole + 2 N/O, 20 A, Emergency-Stop function, 9.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-15700/V/SVB 008241 Y7-8241 EATON ELECTRIC Main switch, 6 pole + 2 N/O, 20 A, Emergency-Stop function, 9..

T0-4-15700/V/SVB

008241

Y7-8241

EATON - MOELLER

1 Pcs.

Main switch, 6 pole + 2 N/O, 20 A, Emergency-Stop function, 90 °, rear mounting General switch; 6-pole + 2 NO; 20 IN; Handle Red/Yellow Lockable in position (OFF); 90 °; Mounting bottom panel Eaton Moeller® series T0 Main switch, T0, 20 A, rear mounting, 4 contact unit(s), 6 pole, 2 N/O, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 6 pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for emergency interruption requirements, the T0-4-15700/V/SVB 008241 Y7-8241 EATON ELECTRIC Main switch, 6 pole + 2 N/O, 20 A, Emergency-Stop function, 9.. operates as a protective switching device to immediately halt machinery operations in critical situations. Such units are standard safety implementations on industrial control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 6
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
008241
Model Code
T0-4-15700/V/SVB
EAN
4015080082415
Product Length/Depth
147 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.158 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CSA
IEC/EN 60947
UL File No.: E36332
VDE 0660
IEC/EN 60947-3
UL Category Control No.: NLRV
IEC/EN 60204
UL
CE
CSA-C22.2 No. 94
UL 60947-4-1
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
