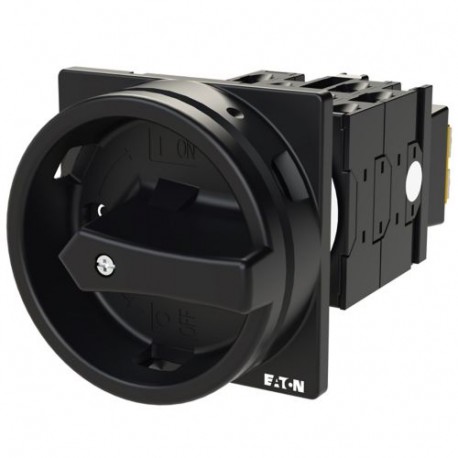

EATON - MOELLER T0-4-15700/EA/SVB T0-4-15700/EA/SVB 008235 Y7-8235 EATON ELECTRIC Main switch, 6 pole + 2 N/O, 20 A, Emergency-Stop function, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-15700/EA/SVB 008235 Y7-8235 EATON ELECTRIC Main switch, 6 pole + 2 N/O, 20 A, Emergency-Stop function, ..

T0-4-15700/EA/SVB

008235

Y7-8235

EATON - MOELLER

1 Pcs.

Main switch, 6 pole + 2 N/O, 20 A, Emergency-Stop function, 90 °, flush mounting General switch; 6-pole + 2 NO; 20 IN; Handle Red/Yellow Lockable in position (OFF); 90 °; Mounting Eaton Moeller® series T0 Main switch, T0, 20 A, flush mounting, 4 contact unit(s), 6 pole, 2 N/O, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 6 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller Main switch (T0-4-15700/EA/SVB) provides essential isolation and emergency switching functions for complex industrial automation setups and heavy-duty machinery. Such multi-pole configurations manage complex interlocking circuits and ensure technician safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Version as number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
008235
Model Code
T0-4-15700/EA/SVB
EAN
4015080082354
Product Length/Depth
130 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.166 kg
Certifications
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-05
IEC/EN 60947-3
IEC/EN 60947
CE
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL 60947-4-1
UL File No.: E36332
CSA-C22.2 No. 94
UL
CSA
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
