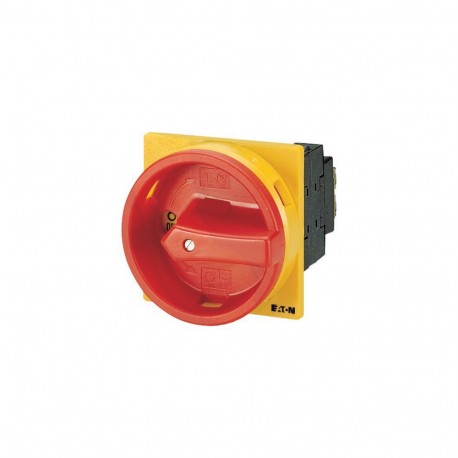

T0-4-15164/EA/SVB 008207 Y7-8207 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 20 A, Emergency-Stop fu..
T0-4-15164/EA/SVB
008207
Y7-8207
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built by Eaton Moeller, the T0-4-15164/EA/SVB is a multi-pole main switch equipped with emergency-stop capabilities for secure machine isolation. Control panel designers typically specify these rotary switches to interrupt power to complex industrial machinery and ensure operator safety during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 6
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL 60947-4-1
UL File No.: E36332
CSA
UL
UL Category Control No.: NLRV
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60204
CSA Class No.: 3211-05
VDE 0660
IEC/EN 60947-3
