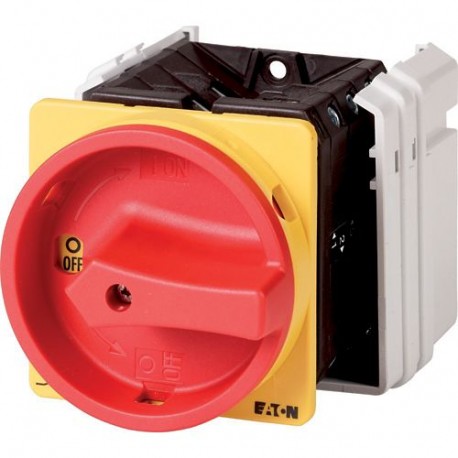

EATON - MOELLER T5-3-8341/EA/SVB T5-3-8341/EA/SVB 096397 Y7-96397 EATON ELECTRIC Main switch, 5-pole, 100 A, Emergency-Stop function, 90 °, f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-3-8341/EA/SVB 096397 Y7-96397 EATON ELECTRIC Main switch, 5-pole, 100 A, Emergency-Stop function, 90 °, f..

T5-3-8341/EA/SVB

096397

Y7-96397

EATON - MOELLER

1 Pcs.

Main switch, 5-pole, 100 A, Emergency-Stop function, 90 °, flush mounting General switch; 5 poles; 100 A; 90 °; Recessed mounting; Handle Eaton Moeller® series T5 Main switch, T5, 100 A, flush mounting, 3 contact unit(s), 5-pole, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 5-pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number T5-3-8341/EA/SVB is an Eaton Moeller main switch equipped with integrated emergency-stop capabilities for machinery safety. These switches ensure that heavy electrical equipment can be shut down rapidly during hazardous situations to protect operators and plant assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 600 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 5

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Main switch
Catalog Number
096397
Model Code
T5-3-8341/EA/SVB
EAN
4015080963974
Product Length/Depth
156 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.74 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
