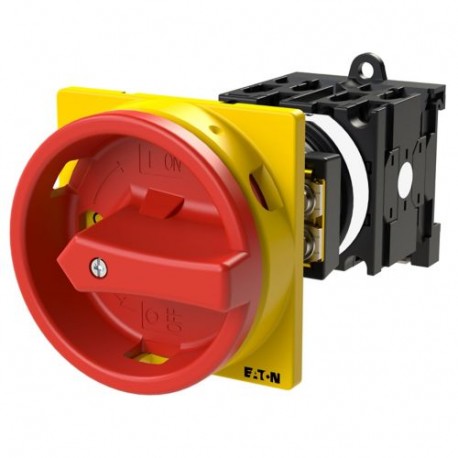

EATON - MOELLER T0-3-8341/V/SVB T0-3-8341/V/SVB 013501 Y7-13501 EATON ELECTRIC Main switch, 5-pole, 20 A, Emergency-Stop function, 90 °, rea.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8341/V/SVB 013501 Y7-13501 EATON ELECTRIC Main switch, 5-pole, 20 A, Emergency-Stop function, 90 °, rea..

T0-3-8341/V/SVB

013501

Y7-13501

EATON - MOELLER

1 Pcs.

Main switch, 5-pole, 20 A, Emergency-Stop function, 90 °, rear mounting General Switch 5 poles 20 A 90° Bottom panel mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, rear mounting, 3 contact unit(s), 5-pole, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 5-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-3-8341/V/SVB is a multi-pole main switch built to handle emergency stop functions and general circuit isolation in automated lines. Equipment builders utilize this style of compact switch to secure control cabinets and ensure rapid shutdown capabilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 5

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
013501
Model Code
T0-3-8341/V/SVB
EAN
4015080135012
Product Length/Depth
137 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.158 kg
Certifications
CSA Class No.: 3211-05
UL Category Control No.: NLRV
IEC/EN 60947
IEC/EN 60947-3
CSA File No.: 012528
UL
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60204
UL 60947-4-1
UL File No.: E36332
CE
CSA
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
