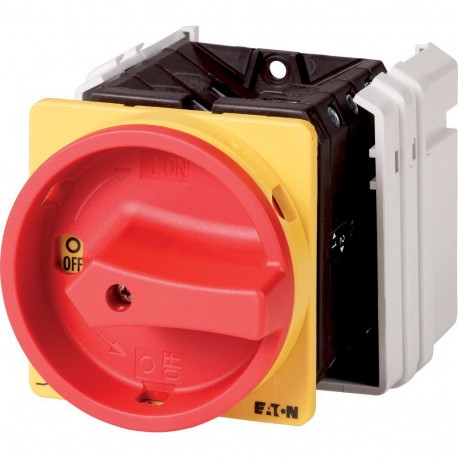

T5B-2-8324/EA/SVB 092932 Y7-92932 EATON ELECTRIC Main switch, 4 pole, 63 A, Emergency-Stop function, 90 °, f..
T5B-2-8324/EA/SVB
092932
Y7-92932
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller main switch with an emergency-stop function provides reliable circuit breaking and emergency shutdown capabilities for industrial machinery and automation lines. These four-pole devices are built to safely interrupt power loads during routine servicing or unexpected operational hazards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Number of poles (EF001391): 4
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA File No.: 012528
UL Category Control No.: NLRV
CSA
VDE 0660
UL
CSA-C22.2 No. 94
CE
CSA Class No.: 3211-05
IEC/EN 60947-3
IEC/EN 60947
UL 60947-4-1
IEC/EN 60204
UL File No.: E36332
