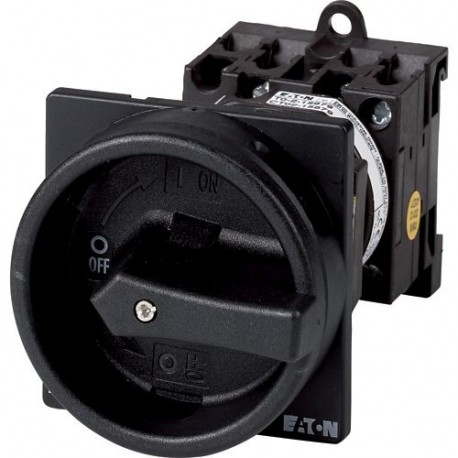

EATON - MOELLER T0-2-8324/V/SVB-SW T0-2-8324/V/SVB-SW 098840 Y7-98840 EATON ELECTRIC Main switch, 4 pole, 20 A, STOP function, 90 °, rear mount.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8324/V/SVB-SW 098840 Y7-98840 EATON ELECTRIC Main switch, 4 pole, 20 A, STOP function, 90 °, rear mount..

T0-2-8324/V/SVB-SW

098840

Y7-98840

EATON - MOELLER

1 Pcs.

Main switch, 4 pole, 20 A, STOP function, 90 °, rear mounting General Switch 4 poles 20 A 90° Bottom panel mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, rear mounting, 2 contact unit(s), 4 pole, STOP function, With black rotary handle and locking ring

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-2-8324/V/SVB-SW main switch offers reliable ON-OFF control and STOP functionality for industrial machinery and distribution panels. Rear-mounted rotary switches allow secure panel integration and manual isolation during servicing.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-2-8324/V/SVB-SW
  • Catalogue code: 098840
  • Catalogue title: T0-2-8324/V/SVB-SW 098840 Y7-98840 EATON ELECTRIC Main switch, 4 pole, 20 A, STOP function, 90 °, rear mount..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Main switch Catalog Number 098840 Model Code T0-2-8324/V/SVB-SW EAN 4015080988403 Product Length/Depth 128 mm Product Height 74 mm Product Width 65 mm Product
  • Manufacturer summary: Main switch, 4 pole, 20 A, STOP function, 90 °, rear mounting General Switch 4 poles 20 A 90° Bottom panel mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, rear mounting, 2 contact unit(s), 4 pole, STOP funct

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
098840
Model Code
T0-2-8324/V/SVB-SW
EAN
4015080988403
Product Length/Depth
128 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.158 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL 60947-4-1
CSA
CSA File No.: 012528
UL
IEC/EN 60204
CSA Class No.: 3211-05
IEC/EN 60947-3
VDE 0660
CE
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
