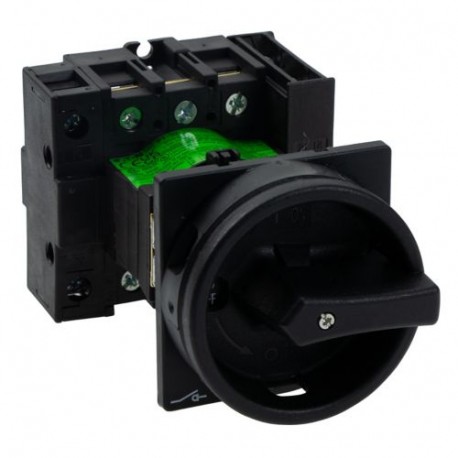

EATON - MOELLER P1-32/V/SVB-SW/N/HI11 P1-32/V/SVB-SW/N/HI11 064978 Y7-64978 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 32 A, STOP fun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/V/SVB-SW/N/HI11 064978 Y7-64978 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 32 A, STOP fun..

P1-32/V/SVB-SW/N/HI11

064978

Y7-64978

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N + 1 N/O + 1 N/C, 32 A, STOP function, Lockable in the 0 (Off) position, rear mounting General Switch 3 poles + N + 1 NO + 1 NC 32 A Bottom mount Eaton Moeller® series P1 Main switch, P1, 32 A, rear mounting, 3 pole + N, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: STOP function, Interlockable, Fitted with: Black rotary handle and locking ring, Mounting method: Rear mounting, Number of poles: Four-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
064978
Model Code
P1-32/V/SVB-SW/N/HI11
EAN
4015080649786
Product Length/Depth
90 mm
Product Height
70 mm
Product Width
78 mm
Product Weight
0.287 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
UL
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60204
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL File No.: E36332
CE
CSA
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 064978 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 32 A
Rated permanent current at AC-23, 400 V (EF011777) 32 A
Rated permanent current at AC-21, 400 V (EF009165) 32 A
Rated operation power at AC-3, 400 V (EF001364) 13 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 15 kW
Switching power at 400 V (EF009166) 15 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 78 mm
Height (EF000040) 70 mm
Depth (EF000049) 90 mm
