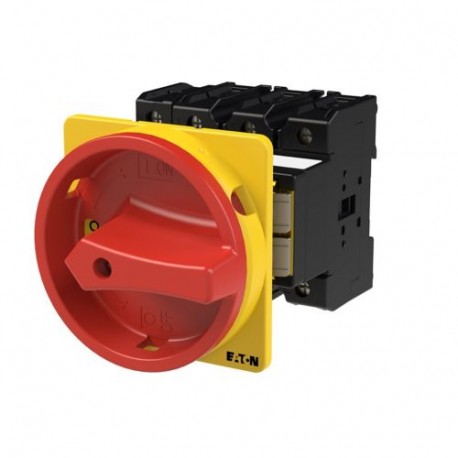

EATON - MOELLER P3-63/V/SVB/N P3-63/V/SVB/N 015144 Y7-15144 EATON ELECTRIC Main switch, 3 pole + N, 63 A, Emergency-Stop function, Lockabl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/V/SVB/N 015144 Y7-15144 EATON ELECTRIC Main switch, 3 pole + N, 63 A, Emergency-Stop function, Lockabl..

P3-63/V/SVB/N

015144

Y7-15144

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 63 A, Emergency-Stop function, Lockable in the 0 (Off) position, rear mounting General Switch 3 poles + N 63 A Bottom panel mount Handle Eaton Moeller® series P3 Main switch, P3, 63 A, rear mounting, 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, NEMA12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller main switch provides secure power disconnection and emergency stopping functions to protect personnel and machinery during maintenance procedures. The P3-63/V/SVB/N model is designed for reliable load switching and padlocking in heavy electrical installations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
015144
Model Code
P3-63/V/SVB/N
EAN
4015080151449
Product Length/Depth
147 mm
Product Height
102 mm
Product Width
90 mm
Product Weight
0.495 kg
Certifications
UL 60947-4-1
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA
IEC/EN 60204
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA File No.: 012528
UL
CSA Class No.: 3211-05
CE
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
