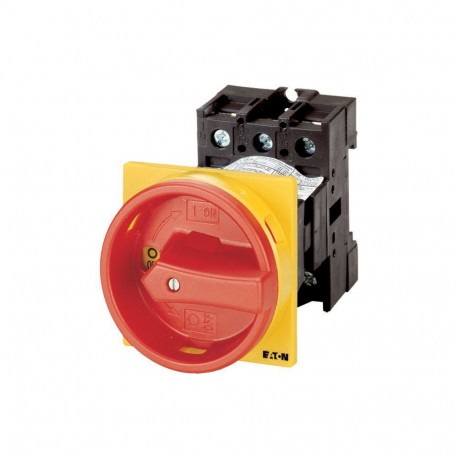

EATON - MOELLER P1-32/V/SVB/N P1-32/V/SVB/N 095825 Y7-95825 EATON ELECTRIC Main switch, 3 pole + N, 32 A, Emergency-Stop function, Lockabl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/V/SVB/N 095825 Y7-95825 EATON ELECTRIC Main switch, 3 pole + N, 32 A, Emergency-Stop function, Lockabl..

P1-32/V/SVB/N

095825

Y7-95825

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 32 A, Emergency-Stop function, Lockable in the 0 (Off) position, rear mounting General Switch 3 poles + N 32 A Bottom panel mount Handle Eaton Moeller® series P1 Main switch, P1, 32 A, rear mounting, 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, Emergency switching off function, Fitted with: Red rotary handle and yellow locking ring, Mounting method: Rear mounting, Number of poles: Four-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller P1-32/V/SVB/N main switch functions as a lockable circuit disconnect device equipped with an emergency-stop mechanism for operator protection. These units are standard additions to machinery control enclosures to ensure reliable power interruption during maintenance intervals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
095825
Model Code
P1-32/V/SVB/N
EAN
4015080958253
Product Length/Depth
90 mm
Product Height
70 mm
Product Width
63 mm
Product Weight
0.247 kg
Certifications
CSA File No.: 012528
IEC/EN 60947
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60204
IEC/EN 60947-3
CSA
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL File No.: E36332
CE
UL 60947-4-1
UL
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
