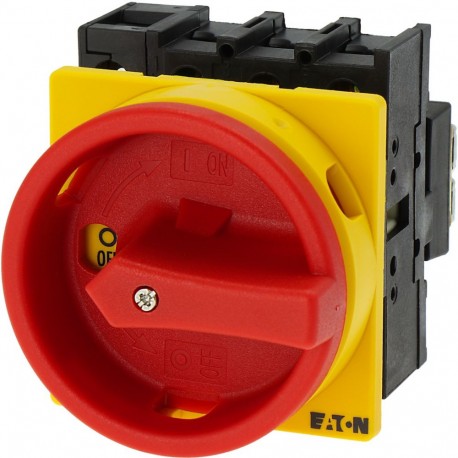

EATON - MOELLER P1-32/EA/SVB/N P1-32/EA/SVB/N 091079 Y7-91079 EATON ELECTRIC Main switch, 3 pole + N, 32 A, Emergency-Stop function, Lockab.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/EA/SVB/N 091079 Y7-91079 EATON ELECTRIC Main switch, 3 pole + N, 32 A, Emergency-Stop function, Lockab..

P1-32/EA/SVB/N

091079

Y7-91079

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 32 A, Emergency-Stop function, Lockable in the 0 (Off) position, flush mounting General Switch 3 poles + N 32 A Flush mount Handle Eaton Moeller® series P1 Main switch, P1, 32 A, flush mounting, 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Emergency switching off function, Interlockable, Fitted with: Red rotary handle and yellow locking ring, Mounting method: Flush mounting, Number of poles: Four-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered with an integrated emergency stop function, the Eaton Moeller main switch provides critical safety isolation for hazardous industrial machinery. Technicians rely on these lockable disconnect switches to comply with safety standards when shutting down equipment for routine maintenance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 1000 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
091079
Model Code
P1-32/EA/SVB/N
EAN
4015080910794
Product Length/Depth
120 mm
Product Height
70 mm
Product Width
65 mm
Product Weight
0.222 kg
Certifications
CSA Class No.: 3211-05
VDE 0660
UL
UL Category Control No.: NLRV
UL 60947-4-1
CSA
IEC/EN 60947
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CE
UL File No.: E36332
CSA File No.: 012528
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
