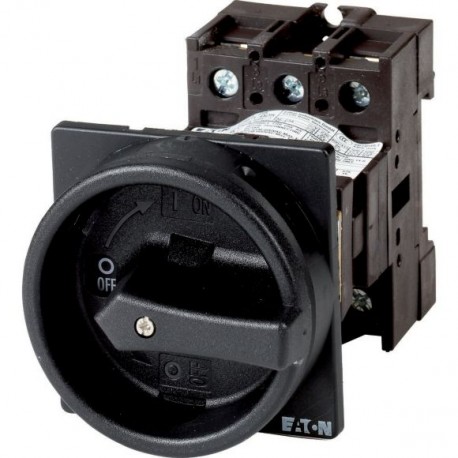

P1-32/V/SVB-SW/N 098198 Y7-98198 EATON ELECTRIC Main switch, 3 pole + N, 32 A, STOP function, Lockable in th..
P1-32/V/SVB-SW/N
098198
Y7-98198
EATON - MOELLER
1 Pcs.
Main switch, 3 pole + N, 32 A, STOP function, Lockable in the 0 (Off) position, rear mounting
General Switch 3 poles + N 32 A Bottom panel mount Handle
Eaton Moeller® series P1 Main switch, P1, 32 A, rear mounting, 3 pole + N, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position
Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: STOP function, Interlockable, Fitted with: Black rotary handle and locking ring, Mounting method: Rear mounting, Number of poles: Four-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
098198
Model Code
P1-32/V/SVB-SW/N
EAN
4015080981985
Product Length/Depth
90 mm
Product Height
70 mm
Product Width
63 mm
Product Weight
0.247 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947
UL
CE
CSA-C22.2 No. 60947-4-1-14
CSA
UL File No.: E36332
VDE 0660
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA File No.: 012528
IEC/EN 60947
UL
CE
CSA-C22.2 No. 60947-4-1-14
CSA
UL File No.: E36332
VDE 0660
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | true |
| Version as maintenance-/service switch (EF006986) | true |
| Version as safety switch (EF006985) | false |
| Version as emergency stop installation (EF006959) | false |
| Version as reversing switch (EF009408) | false |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 32 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 32 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 32 A |
| Rated operation power at AC-3, 400 V (EF001364) | 13 kW |
| Rated short-time withstand current lcw (EF007050) | 0.64 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 15 kW |
| Switching power at 400 V (EF009166) | 15 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | false |
| Motor drive integrated (EF006697) | false |
| Voltage release optional (EF007491) | false |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for distribution board installation (EF007262) | false |
| Suitable for intermediate mounting (EF007264) | false |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Door coupling rotary drive |
| Interlockable (EF006281) | true |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | false |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 63 mm |
| Height (EF000040) | 70 mm |
| Depth (EF000049) | 90 mm |
| Width in number of modular spacings (EF002950) |
