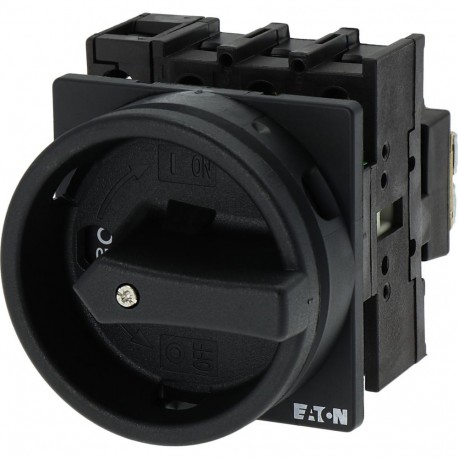

EATON - MOELLER P1-32/EA/SVB-SW/N P1-32/EA/SVB-SW/N 093452 Y7-93452 EATON ELECTRIC Main switch, 3 pole + N, 32 A, STOP function, Lockable in t.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/EA/SVB-SW/N 093452 Y7-93452 EATON ELECTRIC Main switch, 3 pole + N, 32 A, STOP function, Lockable in t..

P1-32/EA/SVB-SW/N

093452

Y7-93452

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 32 A, STOP function, Lockable in the 0 (Off) position, flush mounting General Switch 3 poles + N 32 A Flush mount Handle Black Eaton Moeller® series P1 Main switch, P1, 32 A, flush mounting, 3 pole + N, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: STOP function, Interlockable, Fitted with: Black rotary handle and locking ring, Mounting method: Flush mounting, Number of poles: Four-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing reliable circuit isolation, the P1-32/EA/SVB-SW/N 093452 Y7-93452 EATON ELECTRIC Main switch, 3 pole + N, 32 A, STOP function, Lockable in t.. serves as a primary disconnect device for machinery and electrical distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
093452
Model Code
P1-32/EA/SVB-SW/N
EAN
4015080934523
Product Length/Depth
120 mm
Product Height
70 mm
Product Width
65 mm
Product Weight
0.222 kg
Certifications
UL File No.: E36332
CSA
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CE
UL
CSA-C22.2 No. 94
IEC/EN 60204
VDE 0660
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
