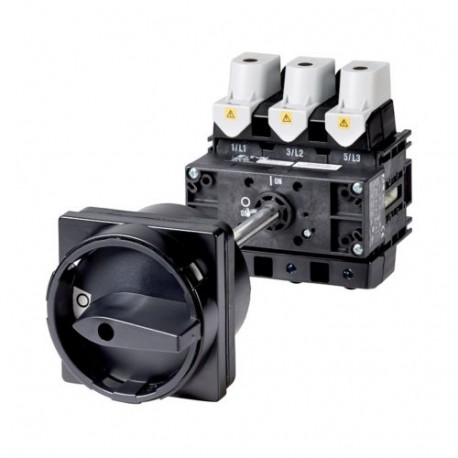

P5-315/V/SVB-SW/N 280961 Y7-280961 EATON ELECTRIC Main switch, 3 pole + N, 315 A, STOP function, Lockable in..
P5-315/V/SVB-SW/N
280961
Y7-280961
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Main switch model P5-315/V/SVB-SW/N by Eaton Moeller is designed for reliable power control and safe operational isolation in demanding electrical architectures. Main switches provide manual disconnect capabilities for entire distribution networks or major machinery circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 315 A
- Rated permanent current at AC-23, 400 V (EF011777): 315 A
- Rated permanent current at AC-21, 400 V (EF009165): 315 A
- Rated operation power at AC-3, 400 V (EF001364): 75 kW
- Rated short-time withstand current lcw (EF007050): 5.8 kA
- Rated operation power at AC-23, 400 V (EF007027): 110 kW
- Switching power at 400 V (EF009166): 110 kW
- Conditioned rated short-circuit current Iq (EF001444): 15 kA
More info
▲General specifications
EN 60947-3
CSA Std. C22.2 No. 14-05
UL 508
VDE
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 14-05
CSA File No.: 223805
CSA-C22.2 No. 94
IEC/EN 60204
CSA
IEC/EN 60947
IEC/EN 60947-3
UL File No.: E36332
UL
VDE 0660
UL Category Control No.: NLRV, NLRV7
