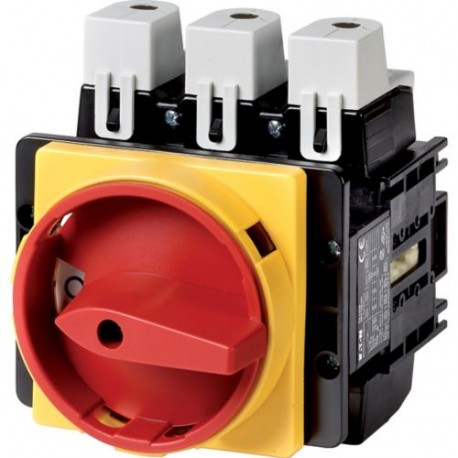

EATON - MOELLER P5-250/EA/SVB/N P5-250/EA/SVB/N 280938 Y7-280938 EATON ELECTRIC Main switch, 3 pole + N, 250 A, Emergency-Stop function, Loc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P5-250/EA/SVB/N 280938 Y7-280938 EATON ELECTRIC Main switch, 3 pole + N, 250 A, Emergency-Stop function, Loc..

P5-250/EA/SVB/N

280938

Y7-280938

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 250 A, Emergency-Stop function, Lockable in the 0 (Off) position, flush mounting P5-250/EA/SVB/N Eaton Moeller® series P5 Main switch, P5, 250 A, flush mounting, 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 90 kW, Rated uninterrupted current: Iu = 250 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller P5-250/EA/SVB/N main switch is engineered to disconnect entire electrical installations or specific machinery segments safely from the mains supply. Featuring integrated emergency-stop capabilities, it is widely deployed in industrial control panels to protect personnel and prevent accidental equipment startup.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 250 A
  • Rated permanent current at AC-23, 400 V (EF011777): 250 A
  • Rated permanent current at AC-21, 400 V (EF009165): 250 A
  • Rated operation power at AC-3, 400 V (EF001364): 55 kW
  • Rated short-time withstand current lcw (EF007050): 4.6 kA
  • Rated operation power at AC-23, 400 V (EF007027): 90 kW
  • Switching power at 400 V (EF009166): 90 kW
  • Conditioned rated short-circuit current Iq (EF001444): 30 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P5 Main switch
Catalog Number
280938
Model Code
P5-250/EA/SVB/N
EAN
4015082809386
Product Length/Depth
200 mm
Product Height
150 mm
Product Width
130 mm
Product Weight
2.43 kg
Compliances
CE Marked
Certifications
IEC 60947
EN 60947-3
UL 508
CSA Std. C22.2 No. 14-05
VDE
IEC/EN 60947-3
CSA Class No.: 3211-05
IEC/EN 60204
CSA-C22.2 No. 14-05
CE
CSA File No.: 223805
UL
UL File No.: E36332
CSA-C22.2 No. 94
UL Category Control No.: NLRV, NLRV7
VDE 0660
IEC/EN 60947
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
