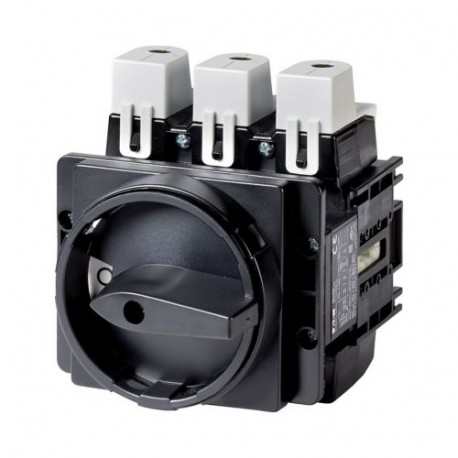

EATON - MOELLER P5-250/EA/SVB-SW/N P5-250/EA/SVB-SW/N 280941 Y7-280941 EATON ELECTRIC Main switch, 3 pole + N, 250 A, STOP function, Lockable i.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P5-250/EA/SVB-SW/N 280941 Y7-280941 EATON ELECTRIC Main switch, 3 pole + N, 250 A, STOP function, Lockable i..

P5-250/EA/SVB-SW/N

280941

Y7-280941

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 250 A, STOP function, Lockable in the 0 (Off) position, flush mounting P5-250/EA/SVB-SW/N Eaton Moeller® series P5 Main switch, P5, 250 A, flush mounting, 3 pole + N, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P5, Stop Function: STOP function, With black rotary handle and locking ring, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 90 kW, Rated uninterrupted current: Iu = 250 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller P5-250/EA/SVB-SW/N 280941 Y7-280941 EATON ELECTRIC Main switch, 3 pole + N, 250 A, STOP function, Lockable i.. is an industrial-grade main switch utilized to break and make electrical power circuits under load conditions. These robust switching devices are commonly mounted on control panels and machine enclosures to provide reliable power isolation and lockout capabilities for operators.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): true
  • Version as maintenance-/service switch (EF006986): true
  • Version as safety switch (EF006985): false
  • Version as emergency stop installation (EF006959): false
  • Version as reversing switch (EF009408): false
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 250 A
  • Rated permanent current at AC-23, 400 V (EF011777): 250 A
  • Rated permanent current at AC-21, 400 V (EF009165): 250 A
  • Rated operation power at AC-3, 400 V (EF001364): 55 kW
  • Rated short-time withstand current lcw (EF007050): 4.6 kA
  • Rated operation power at AC-23, 400 V (EF007027): 90 kW
  • Switching power at 400 V (EF009166): 90 kW
  • Conditioned rated short-circuit current Iq (EF001444): 30 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P5 Main switch
Catalog Number
280941
Model Code
P5-250/EA/SVB-SW/N
EAN
4015082809416
Product Length/Depth
200 mm
Product Height
150 mm
Product Width
130 mm
Product Weight
2.459 kg
Compliances
CE Marked
Certifications
IEC 60947
CSA Std. C22.2 No. 14-05
UL 508
EN 60947-3
VDE
CSA
CSA-C22.2 No. 94
UL File No.: E36332
CE
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60204
UL
UL Category Control No.: NLRV, NLRV7
CSA Class No.: 3211-05
CSA File No.: 223805
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
