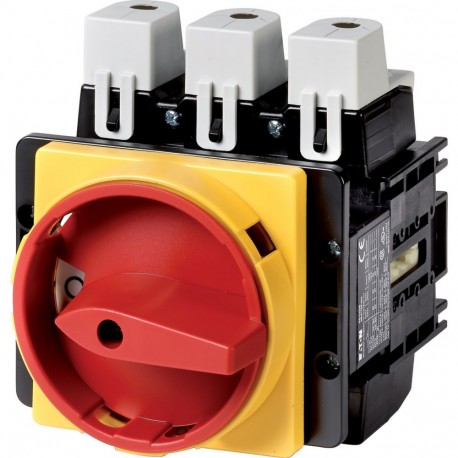

P5-160/EA/SVB/N 280924 Y7-280924 EATON ELECTRIC Main switch, 3 pole + N, 160 A, Emergency-Stop function, Loc..
P5-160/EA/SVB/N
280924
Y7-280924
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller P5-160/EA/SVB/N main switch provides high-capacity emergency-stop functionality and secure circuit interruption for heavy industrial applications. High-amperage rotary switches are mounted on enclosure fronts to give operators immediate manual control over primary power feeds.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 160 A
- Rated permanent current at AC-23, 400 V (EF011777): 160 A
- Rated permanent current at AC-21, 400 V (EF009165): 160 A
- Rated operation power at AC-3, 400 V (EF001364): 45 kW
- Rated short-time withstand current lcw (EF007050): 3 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 55 kW
- Conditioned rated short-circuit current Iq (EF001444): 30 kA
More info
▲General specifications
UL 508
CSA Class No.: 3211-05
CE
CSA-C22.2 No. 14-05
IEC/EN 60947
VDE 0660
UL File No.: E36332
IEC/EN 60947-3
IEC/EN 60204
UL
CSA
CSA-C22.2 No. 94
CSA File No.: 223805
