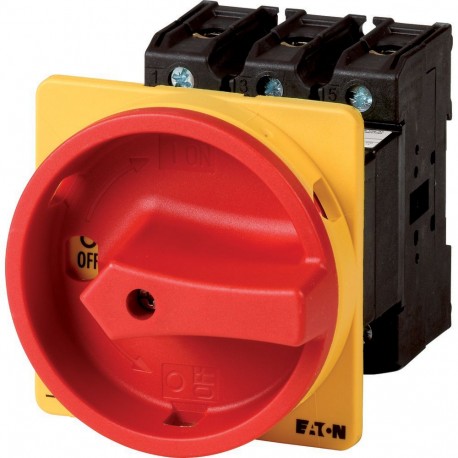

P3-100/V/SVB/N 024636 Y7-24636 EATON ELECTRIC Main switch, 3 pole + N, 100 A, Emergency-Stop function, Locka..
P3-100/V/SVB/N
024636
Y7-24636
EATON - MOELLER
1 Pcs.
Main switch, 3 pole + N, 100 A, Emergency-Stop function, Lockable in the 0 (Off) position, rear mounting
General Switch 3 poles + N 100 A Bottom panel mount Handle
Eaton Moeller® series P3 Main switch, P3, 100 A, rear mounting, 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position
Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, NEMA12
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
024636
Model Code
P3-100/V/SVB/N
EAN
4015080246367
Product Length/Depth
150 mm
Product Height
114 mm
Product Width
90 mm
Product Weight
0.488 kg
Certifications
VDE 0660
CSA Class No.: 3211-05
UL 60947-4-1
CE
UL File No.: E36332
IEC/EN 60204
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
UL
CSA Class No.: 3211-05
UL 60947-4-1
CE
UL File No.: E36332
IEC/EN 60204
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | Yes |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 100 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 100 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 100 A |
| Rated operation power at AC-3, 400 V (EF001364) | 37 kW |
| Rated short-time withstand current lcw (EF007050) | 2 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 55 kW |
| Switching power at 400 V (EF009166) | 55 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Door coupling rotary drive |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 90 mm |
| Height (EF000040) | 114 mm |
| Depth (EF000049) | 150 mm |
