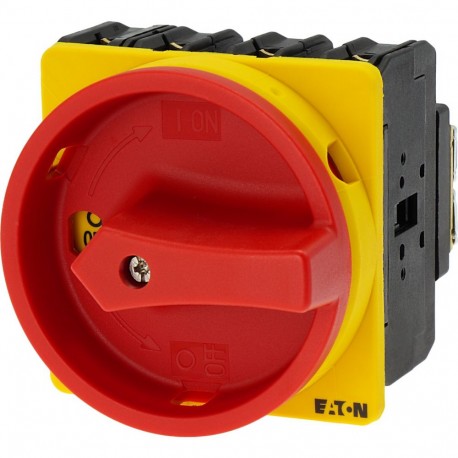

EATON - MOELLER P3-100/EA/SVB/N P3-100/EA/SVB/N 019890 Y7-19890 EATON ELECTRIC Main switch, 3 pole + N, 100 A, Emergency-Stop function, Lock.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/EA/SVB/N 019890 Y7-19890 EATON ELECTRIC Main switch, 3 pole + N, 100 A, Emergency-Stop function, Lock..

P3-100/EA/SVB/N

019890

Y7-19890

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 100 A, Emergency-Stop function, Lockable in the 0 (Off) position, flush mounting General Switch 3 poles + N 100 A Flush mount Handle Eaton Moeller® series P3 Main switch, P3, 100 A, flush mounting, 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, NEMA12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller P3-100/EA/SVB/N main switch combines high-current switching with an integrated emergency-stop function for enhanced plant safety. Industrial facilities use these lockable devices to isolate electrical supplies during servicing or emergency situations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
019890
Model Code
P3-100/EA/SVB/N
EAN
4015080198901
Product Length/Depth
130 mm
Product Height
90 mm
Product Width
90 mm
Product Weight
0.496 kg
Certifications
UL File No.: E36332
CSA File No.: 012528
CSA
UL Category Control No.: NLRV
CE
IEC/EN 60204
UL 60947-4-1
IEC/EN 60947
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
