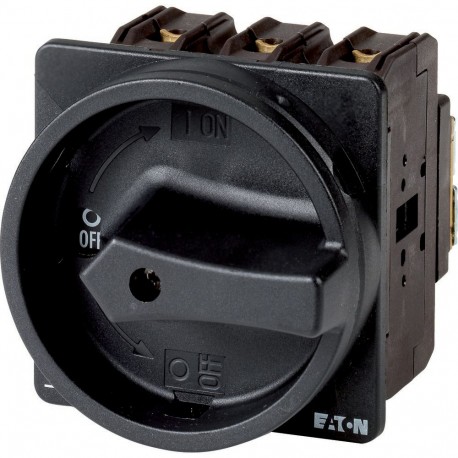

P3-100/EA/SVB-SW/N 022263 Y7-22263 EATON ELECTRIC Main switch, 3 pole + N, 100 A, STOP function, Lockable in..
P3-100/EA/SVB-SW/N
022263
Y7-22263
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for secure power isolation, the P3-100/EA/SVB-SW/N 022263 Y7-22263 EATON ELECTRIC main switch serves as a critical disconnecting device for industrial manufacturing lines and distribution boards. Units of this classification enable operators to completely cut off electrical supplies during routine maintenance or emergency situations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 100 A
- Rated permanent current at AC-23, 400 V (EF011777): 100 A
- Rated permanent current at AC-21, 400 V (EF009165): 100 A
- Rated operation power at AC-3, 400 V (EF001364): 37 kW
- Rated short-time withstand current lcw (EF007050): 2 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 55 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
CSA Class No.: 3211-05
UL
CSA File No.: 012528
CSA-C22.2 No. 94
CE
UL 60947-4-1
UL File No.: E36332
UL Category Control No.: NLRV
CSA
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
