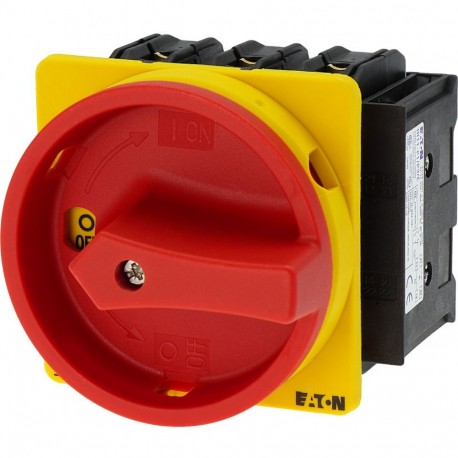

EATON - MOELLER P3-63/EA/SVB/2HI11 P3-63/EA/SVB/2HI11 013198 Y7-13198 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 63 A, Emergency-Stop .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/EA/SVB/2HI11 013198 Y7-13198 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 63 A, Emergency-Stop ..

P3-63/EA/SVB/2HI11

013198

Y7-13198

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + 2 N/O + 2 N/C, 63 A, Emergency-Stop function, flush mounting General Switch 3 poles + 2 NO + 2 NC 63 A Flush mount Eaton Moeller® series P3 Main switch, P3, 63 A, flush mounting, 3 pole, 2 N/O, 2 N/C, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 3 pole, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, NEMA12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller main switch (part number P3-63/EA/SVB/2HI11) provides reliable load-breaking and emergency-stop capabilities for heavy electrical loads in industrial environments. Commonly mounted on machinery enclosures, this component interrupts power supply feeds to protect equipment operators during servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
013198
Model Code
P3-63/EA/SVB/2HI11
EAN
4015080131984
Product Length/Depth
128 mm
Product Height
102 mm
Product Width
114 mm
Product Weight
0.506 kg
Certifications
CSA Class No.: 3211-05
IEC/EN 60204
CSA
CE
VDE 0660
UL 60947-4-1
UL File No.: E36332
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
