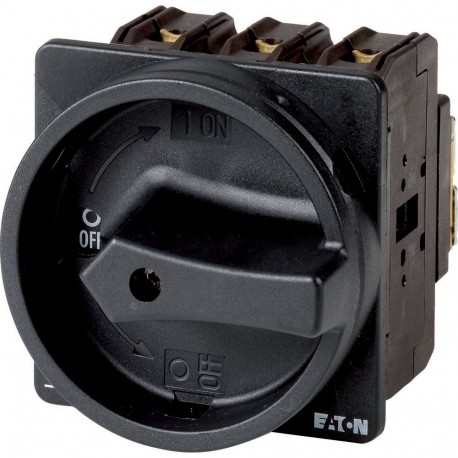

EATON - MOELLER P3-63/EA/SVB-SW/2HI11 P3-63/EA/SVB-SW/2HI11 012653 Y7-12653 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 63 A, STOP functio.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/EA/SVB-SW/2HI11 012653 Y7-12653 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 63 A, STOP functio..

P3-63/EA/SVB-SW/2HI11

012653

Y7-12653

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + 2 N/O + 2 N/C, 63 A, STOP function, flush mounting General Switch 3 poles + 2 NO + 2 NC 63 A Flush mount Eaton Moeller® series P3 Main switch, P3, 63 A, flush mounting, 3 pole, 2 N/O, 2 N/C, STOP function, With black rotary handle and locking ring Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, 3 pole, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, NEMA12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-performance safety switch like the P3-63/EA/SVB-SW/2HI11 012653 Y7-12653 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 63 A, STOP functio.. is integrated into industrial power architectures to handle reliable load breaking and emergency shut-down functions. These devices protect personnel and equipment by providing positive opening operation of main electrical lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
012653
Model Code
P3-63/EA/SVB-SW/2HI11
EAN
4015080126539
Product Length/Depth
128 mm
Product Height
102 mm
Product Width
114 mm
Product Weight
0.506 kg
Certifications
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA-C22.2 No. 94
CSA File No.: 012528
UL File No.: E36332
IEC/EN 60204
CSA
CE
UL 60947-4-1
UL Category Control No.: NLRV
VDE 0660
CSA Class No.: 3211-05
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
