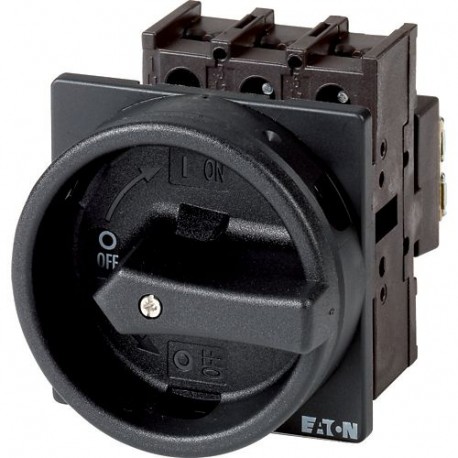

EATON - MOELLER P1-25/EA/SVB-SW/2HI11 P1-25/EA/SVB-SW/2HI11 014822 Y7-14822 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 25 A, STOP functio.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/EA/SVB-SW/2HI11 014822 Y7-14822 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 25 A, STOP functio..

P1-25/EA/SVB-SW/2HI11

014822

Y7-14822

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + 2 N/O + 2 N/C, 25 A, STOP function, flush mounting General Switch 3 poles + 2 NO + 2 NC 25 A Flush mount Eaton Moeller® series P1 Main switch, P1, 25 A, flush mounting, 3 pole, 2 N/O, 2 N/C, STOP function, With black rotary handle and locking ring Main switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: STOP function, Interlockable, Fitted with: Black rotary handle and locking ring, Mounting method: Flush mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
014822
Model Code
P1-25/EA/SVB-SW/2HI11
EAN
4015080148227
Product Length/Depth
119 mm
Product Height
65 mm
Product Width
83 mm
Product Weight
0.27 kg
Certifications
CSA Class No.: 3211-05
CSA File No.: 012528
CE
IEC/EN 60947-3
UL File No.: E36332
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 94
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 014822 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 25 A
Rated permanent current at AC-23, 400 V (EF011777) 25 A
Rated permanent current at AC-21, 400 V (EF009165) 25 A
Rated operation power at AC-3, 400 V (EF001364) 7.5 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 13 kW
Switching power at 400 V (EF009166) 13 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 2
Number of auxiliary contacts as normally open contact (EF001376) 2
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 83 mm
Height (EF000040) 65 mm
Depth (EF000049) 119 mm
