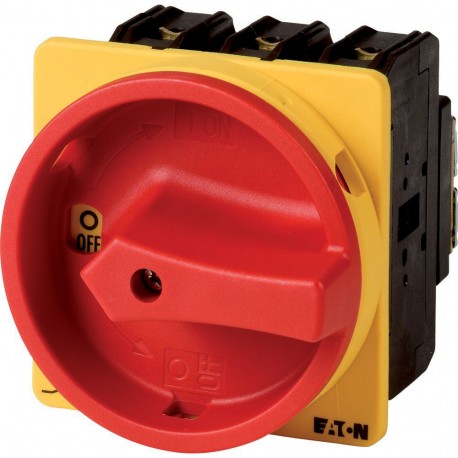

P3-63/EA/SVB/HI11 019891 Y7-19891 EATON ELECTRIC Main switch, 3 pole + 1 N/O + 1 N/C, 63 A, Emergency-Stop f..
P3-63/EA/SVB/HI11
019891
Y7-19891
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An industrial emergency stop switch device such as the P3-63/EA/SVB/HI11 019891 Y7-19891 EATON ELECTRIC Main switch, 3 pole + 1 N/O + 1 N/C, 63 A, Emergency-Stop f.. is installed on machine enclosures to enable rapid power interruption in critical situations. These switches provide reliable mechanical switching to protect operators and equipment from sudden hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 30 kW
- Rated short-time withstand current lcw (EF007050): 1.26 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 100 kA
More info
▲General specifications
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CSA
CE
IEC/EN 60204
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
UL 60947-4-1
UL File No.: E36332
