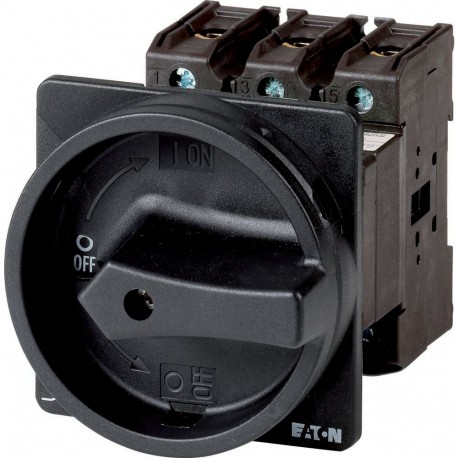

P3-100/V/SVB-SW/HI11 036502 Y7-36502 EATON ELECTRIC Main switch, 3 pole + 1 N/O + 1 N/C, 100 A, STOP functio..
P3-100/V/SVB-SW/HI11
036502
Y7-36502
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
P3-100/V/SVB-SW/HI11 036502 Y7-36502 EATON ELECTRIC Main switch, 3 pole + 1 N/O + 1 N/C, 100 A, STOP functio.. is an Eaton Moeller main switch engineered to provide heavy-duty power disconnection and safety isolation in industrial environments. These devices ensure reliable circuit breaking during maintenance operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 100 A
- Rated permanent current at AC-23, 400 V (EF011777): 100 A
- Rated permanent current at AC-21, 400 V (EF009165): 100 A
- Rated operation power at AC-3, 400 V (EF001364): 37 kW
- Rated short-time withstand current lcw (EF007050): 2 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 55 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
UL 60947-4-1
CSA
CSA File No.: 012528
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60947-3
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL
UL Category Control No.: NLRV
IEC/EN 60204
