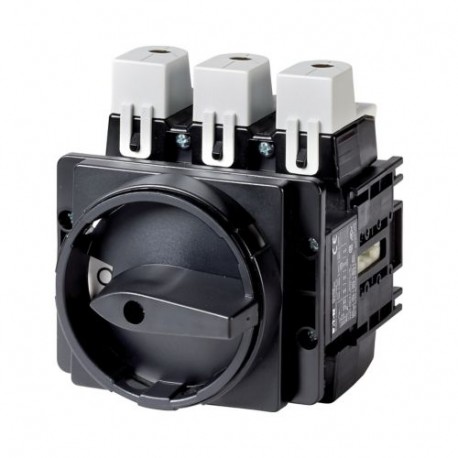

EATON - MOELLER P5-315/EA/SVB-SW/HI10 P5-315/EA/SVB-SW/HI10 280954 Y7-280954 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 315 A, STOP function, Loc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P5-315/EA/SVB-SW/HI10 280954 Y7-280954 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 315 A, STOP function, Loc..

P5-315/EA/SVB-SW/HI10

280954

Y7-280954

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + 1 N/O, 315 A, STOP function, Lockable in the 0 (Off) position, flush mounting P5-315/EA/SVB-SW/HI10 Main switch, P5, 315 A, flush mounting, 3 pole, 1 N/O, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: P5, Stop Function: STOP function, With black rotary handle and locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 110 kW, Rated uninterrupted current: Iu = 315 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P5 Main switch
Catalog Number
280954
Model Code
P5-315/EA/SVB-SW/HI10
EAN
4015082809546
Product Length/Depth
150 mm
Product Height
150 mm
Product Width
130 mm
Product Weight
2.082 kg
Compliances
CE Marked
Certifications
EN 60947-3
IEC 60947
UL 508
CSA Std. C22.2 No. 14-05
VDE
IEC/EN 60947
IEC/EN 60204
UL
CSA File No.: 223805
CE
CSA Class No.: 3211-05
IEC/EN 60947-3
UL Category Control No.: NLRV, NLRV7
VDE 0660
CSA
CSA-C22.2 No. 94
UL File No.: E36332
CSA-C22.2 No. 14-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 280954 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) true
Version as maintenance-/service switch (EF006986) true
Version as safety switch (EF006985) false
Version as emergency stop installation (EF006959) false
Version as reversing switch (EF009408) false
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 315 A
Rated permanent current at AC-23, 400 V (EF011777) 315 A
Rated permanent current at AC-21, 400 V (EF009165) 315 A
Rated operation power at AC-3, 400 V (EF001364) 75 kW
Rated short-time withstand current lcw (EF007050) 5.8 kA
Rated operation power at AC-23, 400 V (EF007027) 110 kW
Switching power at 400 V (EF009166) 110 kW
Conditioned rated short-circuit current Iq (EF001444) 15 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) false
Motor drive integrated (EF006697) false
Voltage release optional (EF007491) false
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) true
Suitable for front mounting centre (EF007248) false
Suitable for distribution board installation (EF007262) false
Suitable for intermediate mounting (EF007264) false
Colour control element (EF007167) Black
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) true
Type of electrical connection of main circuit (EF006819) Frame clamp
With pre-assembled cabling (EF016444) false
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 130 mm
Height (EF000040) 150 mm
Depth (EF000049) 150 mm
Width in number of modular spacings (EF002950)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
