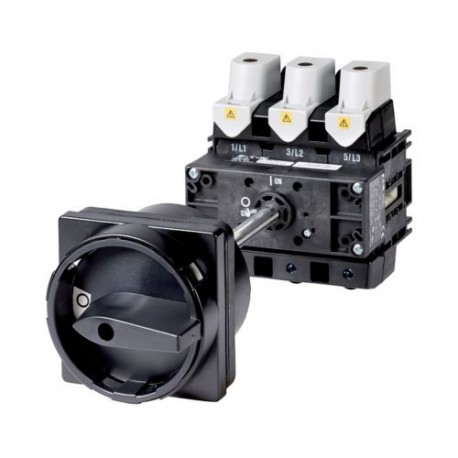

P5-250/V/SVB-SW/HI10 280946 Y7-280946 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 250 A, STOP function, Lock..
P5-250/V/SVB-SW/HI10
280946
Y7-280946
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller P5-250/V/SVB-SW/HI10 280946 Y7-280946 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 250 A, STOP function, Lock.. is a high-capacity manual switching device designed to interrupt large electrical currents safely in primary power distribution networks. Such units prevent accidental energization during critical maintenance procedures in industrial plants.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 250 A
- Rated permanent current at AC-23, 400 V (EF011777): 250 A
- Rated permanent current at AC-21, 400 V (EF009165): 250 A
- Rated operation power at AC-3, 400 V (EF001364): 55 kW
- Rated short-time withstand current lcw (EF007050): 4.6 kA
- Rated operation power at AC-23, 400 V (EF007027): 90 kW
- Switchingpower at 400 V (EF009166): 90 kW
- Conditioned rated short-circuit current Iq (EF001444): 30 kA
More info
▲General specifications
EN 60947-3
CSA Std. C22.2 No. 14-05
IEC 60947
VDE
CSA
UL File No.: E36332
CE
CSA File No.: 223805
CSA-C22.2 No. 14-05
IEC/EN 60204
IEC/EN 60947
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV, NLRV7
UL
VDE 0660
