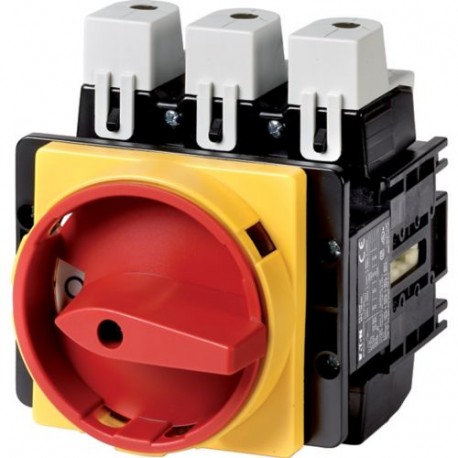

P5-125/EA/SVB/HI10 280899 Y7-280899 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 125 A, Emergency-Stop functi..
P5-125/EA/SVB/HI10
280899
Y7-280899
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as a primary control component, the P5-125/EA/SVB/HI10 280899 Y7-280899 EATON ELECTRIC Main switch serves to safely connect and disconnect power supplies in automation installations. These devices are standard in industrial panels to ensure operator safety and facilitate emergency stopping routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 125 A
- Rated permanent current at AC-23, 400 V (EF011777): 125 A
- Rated permanent current at AC-21, 400 V (EF009165): 125 A
- Rated operation power at AC-3, 400 V (EF001364): 37 kW
- Rated operation power at AC-23, 400 V (EF007027): 45 kW
- Switching power at 400 V (EF009166): 45 kW
- Conditioned rated short-circuit current Iq (EF001444): 30 kA
More info
▲General specifications
IEC 60947
CSA Std. C22.2 No. 14-05
UL 508
VDE
UL
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
CSA
UL Category Control No.: NLRV, NLRV7
CE
VDE 0660
IEC/EN 60204
IEC/EN 60947
CSA File No.: 223805
UL File No.: E36332
