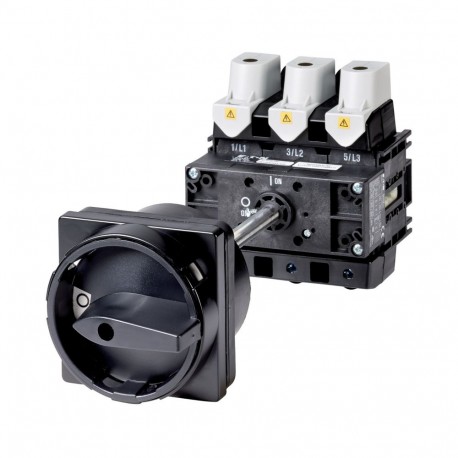

P5-125/V/SVB-SW/HI10 280918 Y7-280918 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 125 A, STOP function, Lock..
P5-125/V/SVB-SW/HI10
280918
Y7-280918
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
P5-125/V/SVB-SW/HI10 is an Eaton Moeller main switch configured for secure mechanical power interruption and lockout safety in industrial plants. Main switches provide reliable operational control and emergency isolation to protect personnel during machine servicing tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 125 A
- Rated permanent current at AC-23, 400 V (EF011777): 125 A
- Rated permanent current at AC-21, 400 V (EF009165): 125 A
- Rated operation power at AC-3, 400 V (EF001364): 37 kW
- Rated short-time withstand current lcw (EF007050): 2.5 kA
- Rated operation power at AC-23, 400 V (EF007027): 45 kW
- Switching power at 400 V (EF009166): 45 kW
- Conditioned rated short-circuit current Iq (EF001444): 30 kA
More info
▲General specifications
CSA Std. C22.2 No. 14-05
EN 60947-3
IEC 60947
VDE
CSA-C22.2 No. 94
IEC/EN 60947
UL Category Control No.: NLRV, NLRV7
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA File No.: 223805
VDE 0660
CSA-C22.2 No. 14-05
IEC/EN 60204
CSA
UL
UL File No.: E36332
CE
