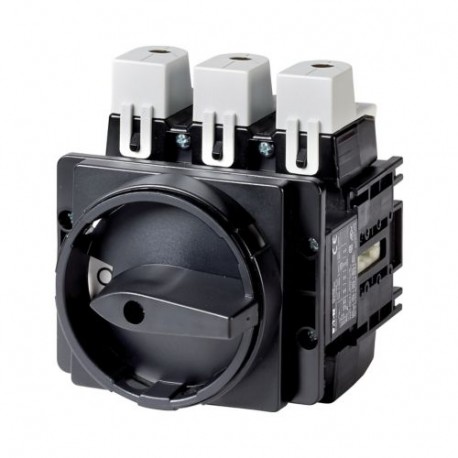

P5-125/EA/SVB-SW/HI10 280912 Y7-280912 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 125 A, STOP function, Loc..
P5-125/EA/SVB-SW/HI10
280912
Y7-280912
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller P5-125/EA/SVB-SW/HI10 is a heavy-duty main and maintenance switch utilized in demanding industrial power distribution networks. Such devices are deployed to ensure complete electrical isolation of large machinery during heavy maintenance workflows.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 125 A
- Rated permanent current at AC-23, 400 V (EF011777): 125 A
- Rated permanent current at AC-21, 400 V (EF009165): 125 A
- Rated operation power at AC-3, 400 V (EF001364): 37 kW
- Rated short-time withstand current lcw (EF007050): 2.5 kA
- Rated operation power at AC-23, 400 V (EF007027): 45 kW
- Switching power at 400 V (EF009166): 45 kW
- Conditioned rated short-circuit current Iq (EF001444): 30 kA
More info
▲General specifications
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947
VDE
CSA
UL Category Control No.: NLRV, NLRV7
CSA File No.: 223805
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 14-05
IEC/EN 60947-3
CE
CSA-C22.2 No. 94
UL
