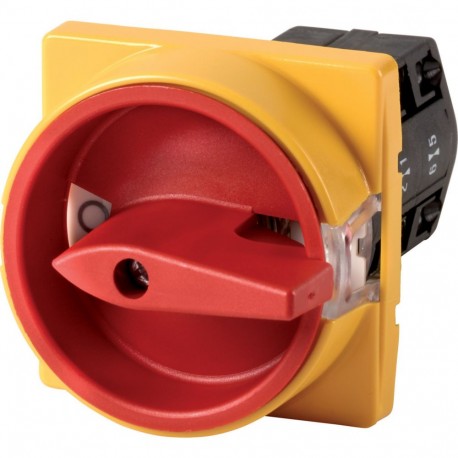

EATON - MOELLER TM-2-8292/E/SVB TM-2-8292/E/SVB 045484 Y7-45484 EATON ELECTRIC Control circuit switches, Emergency-Stop function, Contacts: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8292/E/SVB 045484 Y7-45484 EATON ELECTRIC Control circuit switches, Emergency-Stop function, Contacts: ..

TM-2-8292/E/SVB

045484

Y7-45484

EATON - MOELLER

1 Pcs.

Control circuit switches, Emergency-Stop function, Contacts: 3, 10 A, 90 °, flush mounting, up to 250 V AC per contact Control Switch 3 Pole 10A Faceplate 0-1 90° Mounting Eaton Moeller® series TM Control circuit switches, TM, 10 A, flush mounting, Contacts: 3, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Control circuit isolator, Product range: Control switches, Part group reference: TM, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: up to 250 V AC per contact, Contacts: 3, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-2-8292/E/SVB control circuit switch incorporates an emergency-stop function intended for machine safety systems and operator control stations. Control circuit and safety switches interrupt low-voltage control signals to immediately halt hazardous operational sequences in industrial plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 10 A
  • Rated permanent current at AC-21, 400 V (EF009165): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 0 kW
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Rated operation power at AC-23, 400 V (EF007027): 3 kW
  • Switching power at 400 V (EF009166): 0 kW
  • Conditioned rated short-circuit current Iq (EF001444): 0 kA
  • Number of poles (EF001391): 3
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Accessory Control circuit isolator
Catalog Number
045484
Model Code
TM-2-8292/E/SVB
EAN
4015080454847
Product Length/Depth
89 mm
Product Height
48 mm
Product Width
30 mm
Product Weight
0.059 kg
Certifications
UL 508
IEC/EN 60947-5-1
UL Category Control No.: NLRV
CSA
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 94
Certified by UL for use in Canada
IEC/EN 60947-3
IEC/EN 60947
CE
UL
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
Catalog Notes
up to 250 V AC per contact
