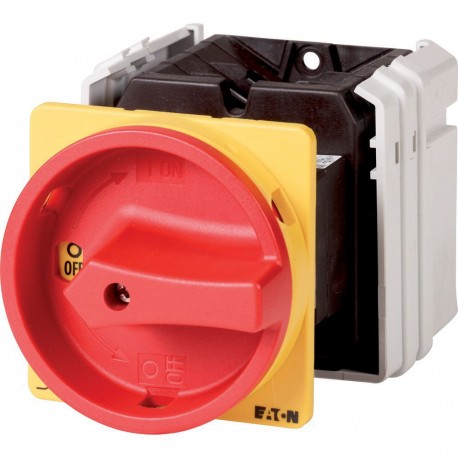

T5-2-1/V/SVB 097073 Y7-97073 EATON ELECTRIC Main switch, 3 pole, 100 A, Emergency-Stop function, 90 °, rear ..
T5-2-1/V/SVB
097073
Y7-97073
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller main switch with emergency-stop functionality provides reliable power interruption and safety control for industrial machinery. Plant operators integrate these rotary switches into control panels to ensure compliance with safety standards during emergency shutdowns. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 415 V
- Rated permanent current Iu (EF001389): 100 A
- Rated permanent current at AC-21, 400 V (EF009165): 100 A
- Rated operation power at AC-3, 400 V (EF001364): 30 kW
- Rated short-time withstand current lcw (EF007050): 1.7 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 55 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Number of poles (EF001391): 3
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
