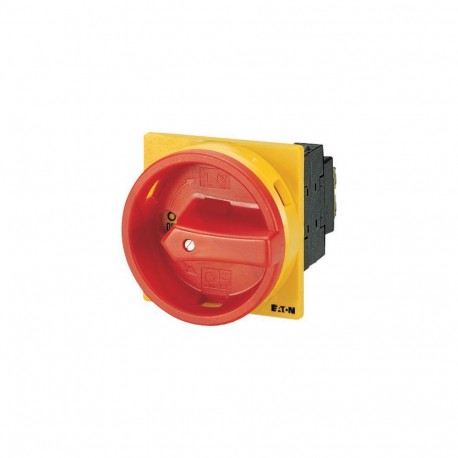

T3-2-1/EA/SVB 028612 Y7-28612 EATON ELECTRIC Main switch, 3 pole, 32 A, Emergency-Stop function, 90 °, flush..
T3-2-1/EA/SVB
028612
Y7-28612
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller main switch combines standard operational control with a dedicated emergency stop function for machinery safety compliance. These flush-mounted components allow operators to quickly shut down power circuits to prevent accidents.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 3
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60947-3
CE
CSA-C22.2 No. 94
IEC/EN 60947
UL 60947-4-1
CSA
CSA-C22.2 No. 60947-4-1-14
UL
UL Category Control No.: NLRV
CSA File No.: 012528
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60204
