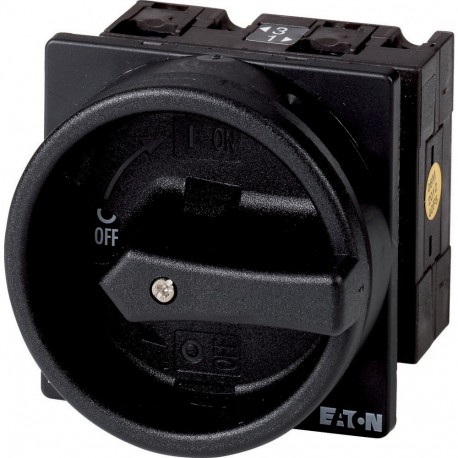

T3-2-1/EA/SVB-SW 030985 Y7-30985 EATON ELECTRIC P & T switches
T3-2-1/EA/SVB-SW
030985
Y7-30985
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Control motor circuits effectively using the T3-2-1/EA/SVB-SW 030985 Y7-30985 Eaton Electric P & T switch. Rotary switches are commonly mounted on machine enclosures to provide local manual control, operational mode selection, and safety isolation for electric drives.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 3
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60204
UL
CE
IEC/EN 60947
VDE 0660
CSA Class No.: 3211-05
UL 60947-4-1
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CSA
UL File No.: E36332
IEC/EN 60947-3
