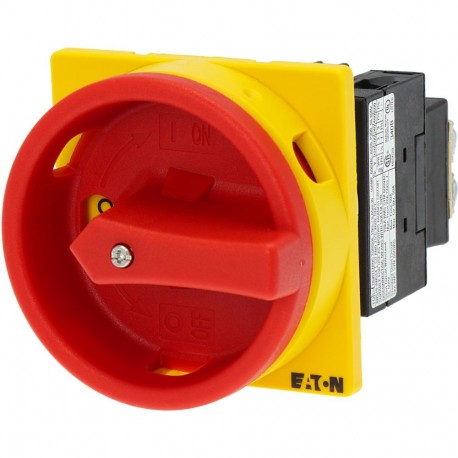

T0-2-1/EA/SVB 038873 Y7-38873 EATON ELECTRIC Main switch, 3 pole, 20 A, Emergency-Stop function, 90 °, Locka..
T0-2-1/EA/SVB
038873
Y7-38873
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T0-2-1/EA/SVB main switch provides secure power disconnection and emergency-stop functionality within machinery control panels. Engineers deploy these multi-pole rotary switches to interrupt electrical supplies reliably during servicing or unexpected plant floor faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 3
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60204
CE
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60947
UL 60947-4-1
VDE 0660
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA
CSA File No.: 012528
CSA-C22.2 No. 94
