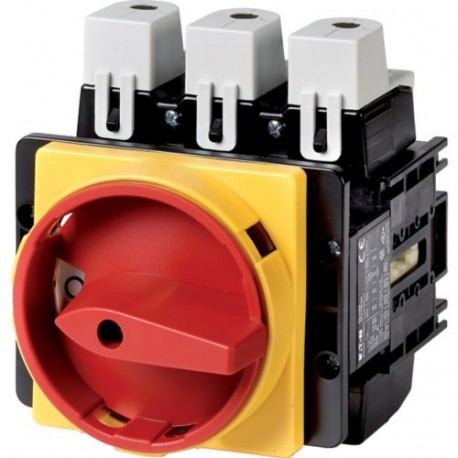

EATON - MOELLER P5-315/EA/SVB P5-315/EA/SVB 280950 Y7-280950 EATON ELECTRIC Main switch, 3 pole, 315 A, Emergency-Stop function, Lockable .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P5-315/EA/SVB 280950 Y7-280950 EATON ELECTRIC Main switch, 3 pole, 315 A, Emergency-Stop function, Lockable ..

P5-315/EA/SVB

280950

Y7-280950

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 315 A, Emergency-Stop function, Lockable in the 0 (Off) position, flush mounting P5-315/EA/SVB Eaton Moeller® series P5 Main switch, P5, 315 A, flush mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 110 kW, Rated uninterrupted current: Iu = 315 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller main switch provides high-capacity electrical isolation for heavy manufacturing machinery, allowing operators to safely disconnect power during routine upkeep or emergencies. This robust 3-pole unit handles heavy electrical loads with integrated lockable mechanisms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 315 A
  • Rated permanent current at AC-23, 400 V (EF011777): 315 A
  • Rated permanent current at AC-21, 400 V (EF009165): 315 A
  • Rated operation power at AC-3, 400 V (EF001364): 75 kW
  • Rated short-time withstand current lcw (EF007050): 5.8 kA
  • Rated operation power at AC-23, 400 V (EF007027): 110 kW
  • Switching power at 400 V (EF009166): 110 kW
  • Conditioned rated short-circuit current Iq (EF001444): 15 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P5 Main switch
Catalog Number
280950
Model Code
P5-315/EA/SVB
EAN
4015082809508
Product Length/Depth
150 mm
Product Height
150 mm
Product Width
130 mm
Product Weight
1.938 kg
Compliances
CE Marked
Certifications
UL 508
IEC 60947
EN 60947-3
CSA Std. C22.2 No. 14-05
VDE
CSA Class No.: 3211-05
CSA File No.: 223805
VDE 0660
CSA-C22.2 No. 94
CE
UL Category Control No.: NLRV, NLRV7
CSA
IEC/EN 60947
UL File No.: E36332
CSA-C22.2 No. 14-05
IEC/EN 60947-3
UL
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
