P5-315/EA/SVB-SW 280953 Y7-280953 EATON ELECTRIC Main switch, 3 pole, 315 A, STOP function, Lockable in the ..
P5-315/EA/SVB-SW
280953
Y7-280953
EATON - MOELLER
1 Pcs.

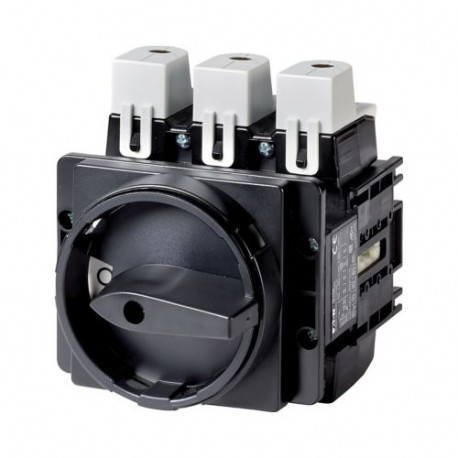

Main switch, 3 pole, 315 A, STOP function, Lockable in the 0 (Off) position, flush mounting
P5-315/EA/SVB-SW
Eaton Moeller® series P5 Main switch, P5, 315 A, flush mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: P5, Stop Function: STOP function, With black rotary handle and locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 110 kW, Rated uninterrupted current: Iu = 315 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series P5 Main switch
Catalog Number
280953
Model Code
P5-315/EA/SVB-SW
EAN
4015082809539
Product Length/Depth
150 mm
Product Height
150 mm
Product Width
130 mm
Product Weight
1.938 kg
Compliances
CE Marked
Certifications
IEC 60947
CSA Std. C22.2 No. 14-05
UL 508
EN 60947-3
VDE
UL Category Control No.: NLRV, NLRV7
CSA File No.: 223805
IEC/EN 60204
UL File No.: E36332
CSA-C22.2 No. 94
CSA
CSA Class No.: 3211-05
UL
CSA-C22.2 No. 14-05
IEC/EN 60947
CE
IEC/EN 60947-3
VDE 0660
CSA Std. C22.2 No. 14-05
UL 508
EN 60947-3
VDE
UL Category Control No.: NLRV, NLRV7
CSA File No.: 223805
IEC/EN 60204
UL File No.: E36332
CSA-C22.2 No. 94
CSA
CSA Class No.: 3211-05
UL
CSA-C22.2 No. 14-05
IEC/EN 60947
CE
IEC/EN 60947-3
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | true |
| Version as maintenance-/service switch (EF006986) | true |
| Version as safety switch (EF006985) | false |
| Version as emergency stop installation (EF006959) | false |
| Version as reversing switch (EF009408) | false |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 315 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 315 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 315 A |
| Rated operation power at AC-3, 400 V (EF001364) | 75 kW |
| Rated short-time withstand current lcw (EF007050) | 5.8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 15 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | false |
| Motor drive integrated (EF006697) | false |
| Voltage release optional (EF007491) | false |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | true |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for distribution board installation (EF007262) | false |
| Suitable for intermediate mounting (EF007264) | false |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Door coupling rotary drive |
| Interlockable (EF006281) | true |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| With pre-assembled cabling (EF016444) | false |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 130 mm |
| Height (EF000040) | 150 mm |
| Depth (EF000049) | 150 mm |
| Width in number of modular spacings (EF002950) |
