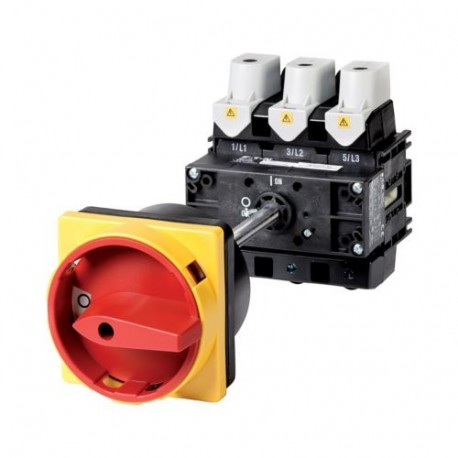

EATON - MOELLER P5-160/V/SVB P5-160/V/SVB 280928 Y7-280928 EATON ELECTRIC Main switch, 3 pole, 160 A, Emergency-Stop function, Lockable i.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P5-160/V/SVB 280928 Y7-280928 EATON ELECTRIC Main switch, 3 pole, 160 A, Emergency-Stop function, Lockable i..

P5-160/V/SVB

280928

Y7-280928

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 160 A, Emergency-Stop function, Lockable in the 0 (Off) position, rear mounting P5-160/V/SVB Eaton Moeller® series P5 Main switch, P5, 160 A, rear mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 160 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

P5-160/V/SVB 280928 Y7-280928 EATON ELECTRIC Main switch, 3 pole, 160 A, Emergency-Stop function, Lockable i.. is a heavy-duty main switch designed to handle high-current electrical isolation and emergency power cutoff in industrial applications. These devices are installed at primary distribution points to ensure plant safety during maintenance and emergency situations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 160 A
  • Rated permanent current at AC-23, 400 V (EF011777): 160 A
  • Rated permanent current at AC-21, 400 V (EF009165): 160 A
  • Rated operation power at AC-3, 400 V (EF001364): 45 kW
  • Rated short-time withstand current lcw (EF007050): 3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 30 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P5 Main switch
Catalog Number
280928
Model Code
P5-160/V/SVB
EAN
4015082809287
Product Length/Depth
115 mm
Product Height
150 mm
Product Width
130 mm
Product Weight
1.343 kg
Certifications
CSA
CSA File No.: 223805
UL Category Control No.: NLRV, NLRV7
CSA-C22.2 No. 94
CE
IEC/EN 60947-3
IEC/EN 60204
UL File No.: E36332
IEC/EN 60947
UL 508
CSA Class No.: 3211-05
CSA-C22.2 No. 14-05
UL
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
