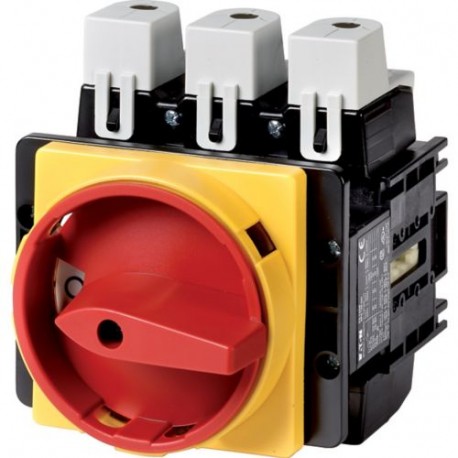

P5-160/EA/SVB 280922 Y7-280922 EATON ELECTRIC Main switch, 3 pole, 160 A, Emergency-Stop function, Lockable ..
P5-160/EA/SVB
280922
Y7-280922
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller P5-160/EA/SVB main switch functions as a heavy-duty control device used to safely disconnect electrical circuits during maintenance or emergency interventions. These components are typically integrated into industrial distribution panels to ensure complete power isolation and protect personnel from live hazards.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 160 A
- Rated permanent current at AC-23, 400 V (EF011777): 160 A
- Rated permanent current at AC-21, 400 V (EF009165): 160 A
- Rated operation power at AC-3, 400 V (EF001364): 45 kW
- Rated short-time withstand current lcw (EF007050): 3 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 55 kW
- Conditioned rated short-circuit current Iq (EF001444): 30 kA
More info
▲General specifications
UL File No.: E36332
IEC/EN 60947-3
VDE 0660
CSA File No.: 223805
UL 508
CSA Class No.: 3211-05
IEC/EN 60947
CSA
CSA-C22.2 No. 94
UL Category Control No.: NLRV, NLRV7
CSA-C22.2 No. 14-05
IEC/EN 60204
UL
