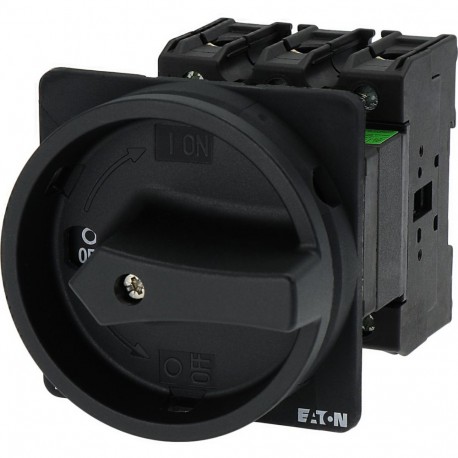

EATON - MOELLER P3-100/V/SVB-SW P3-100/V/SVB-SW 064976 Y7-64976 EATON ELECTRIC Main switch, 3 pole, 100 A, STOP function, Lockable in the 0 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/V/SVB-SW 064976 Y7-64976 EATON ELECTRIC Main switch, 3 pole, 100 A, STOP function, Lockable in the 0 ..

P3-100/V/SVB-SW

064976

Y7-64976

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 100 A, STOP function, Lockable in the 0 (Off) position, rear mounting General Switch 3 poles 100 A Bottom panel mount Lever Black Eaton Moeller® series P3 Main switch, P3, 100 A, rear mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, NEMA12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a primary disconnect mechanism, the Eaton Moeller P3-100/V/SVB-SW main switch allows operators to manually de-energize industrial machinery and control panels safely to perform routine maintenance or comply with safety protocols.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
064976
Model Code
P3-100/V/SVB-SW
EAN
4015080649762
Product Length/Depth
150 mm
Product Height
114 mm
Product Width
90 mm
Product Weight
0.458 kg
Certifications
CSA File No.: 012528
IEC/EN 60204
UL File No.: E36332
CE
CSA-C22.2 No. 60947-4-1-14
VDE 0660
IEC/EN 60947
UL 60947-4-1
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA Class No.: 3211-05
UL
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
