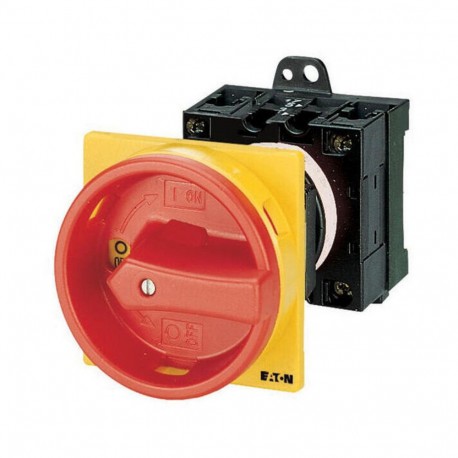

T0-2-10/V/SVB 011108 Y7-11108 EATON ELECTRIC Main switch, 3 pole + N, 20 A, Emergency-Stop function, 90 °, r..
T0-2-10/V/SVB
011108
Y7-11108
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller T0-2-10/V/SVB main switch delivers dependable power isolation and emergency stop capability for various commercial and industrial electrical circuits. Panel builders rely on such units to disconnect incoming supply lines safely during system servicing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 4
More info
▲General specifications
IEC/EN 60204
UL
VDE 0660
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CE
CSA
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60947
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
