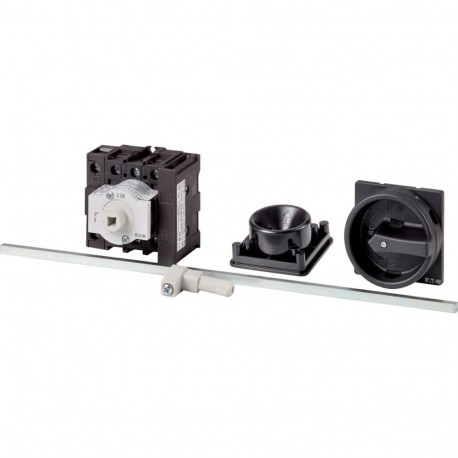

EATON - MOELLER P1-32/M4/SVB-SW/N/HI11 P1-32/M4/SVB-SW/N/HI11 172872 Y7-172872 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 32 A, STOP f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/M4/SVB-SW/N/HI11 172872 Y7-172872 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 32 A, STOP f..

P1-32/M4/SVB-SW/N/HI11

172872

Y7-172872

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N + 1 N/O + 1 N/C, 32 A, STOP function, Lockable in the 0 (Off) position, rear mounting, with 400 mm metal shaft P1-32/M4/SVB-SW/N/HI11 Eaton Moeller® series P1 Main switch, P1, 32 A, rear mounting, 3 pole + N, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, With metal shaft for a control panel depth of 400 mm Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, STOP function, Fitted with: Metal shaft for a control panel depth of 400 mm, Black rotary handle and locking ring, Mounting method: Rear mounting, Number of poles: Four-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller P1-32/M4/SVB-SW/N/HI11 is a multi-pole main switch engineered to provide dependable load-break switching and safety isolation in industrial control panels. Devices of this type are typically installed directly onto machine enclosures or distribution boards to ensure secure power disconnection during servicing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
172872
Model Code
P1-32/M4/SVB-SW/N/HI11
EAN
4015081694518
Product Length/Depth
340 mm
Product Height
70 mm
Product Width
86 mm
Product Weight
0.385 kg
Certifications
CSA File No.: 012528
VDE 0660
CSA-C22.2 No. 94
CSA Class No.: 3211-05
UL 60947-4-1
IEC/EN 60947-3
UL
CSA
CE
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
IEC/EN 60947
UL File No.: E36332
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
