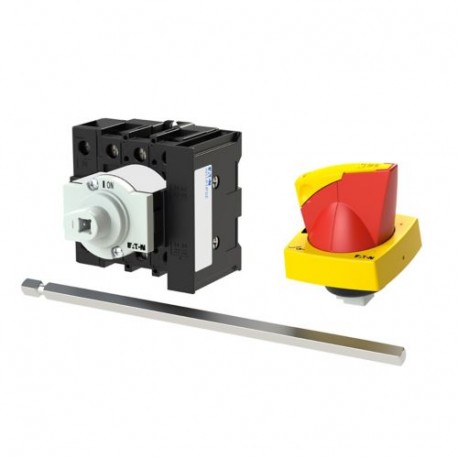

P1-25/M4/K1-PR/N/HI11 172777 Y7-172777 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 25 A, Emergen..
P1-25/M4/K1-PR/N/HI11
172777
Y7-172777
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for secure power isolation, the Eaton Moeller P1-25/M4/K1-PR/N/HI11 functions as a main switch to safely disconnect electrical circuits during maintenance or emergency procedures. These industrial switches are typically installed on control panels and machine housings to provide reliable circuit breaking and operator safety under load.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 25 A
- Rated permanent current at AC-23, 400 V (EF011777): 25 A
- Rated permanent current at AC-21, 400 V (EF009165): 25 A
- Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 13 kW
- Switching power at 400 V (EF009166): 13 kW
- Conditioned rated short-circuit current Iq (EF001444): 50 kA
More info
▲General specifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
