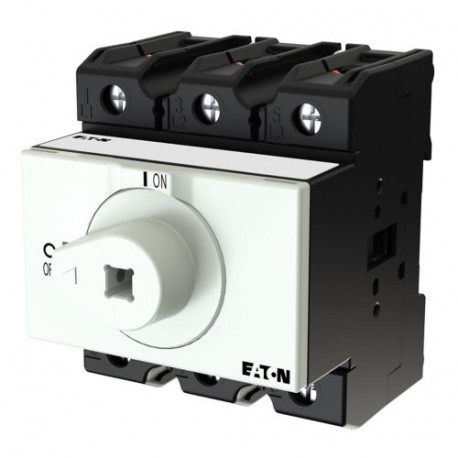

EATON - MOELLER P3-63/XM P3-63/XM 172836 Y7-172836 EATON ELECTRIC Main switch, 3 pole, 63 A, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/XM 172836 Y7-172836 EATON ELECTRIC Main switch, 3 pole, 63 A, rear mounting

P3-63/XM

172836

Y7-172836

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 63 A, rear mounting P3-63/XM Eaton Moeller® series P3 Main switch, P3, 63 A, rear mounting, 3 pole Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Notes: Handle SVB(-SW)-P3/M (172841; 172843) only for use with extension shaft P1/P3-400 (172844)., Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for rear mounting applications, the Eaton Moeller P3-63/XM main switch provides reliable power isolation and circuit control within industrial enclosures. Such manual switching devices are typically integrated into control panels and machine architectures to safely disconnect electrical systems prior to servicing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
172836
Model Code
P3-63/XM
EAN
4015081694198
Product Length/Depth
82 mm
Product Height
84 mm
Product Width
72 mm
Product Weight
0.29 kg
Certifications
IEC/EN 60947
CE
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA-C22.2 No. 94
IEC/EN 60204
CSA File No.: 012528
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA
UL File No.: E36332
CSA Class No.: 3211-05
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
