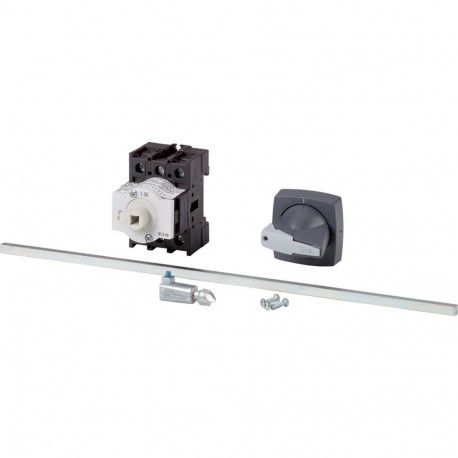

EATON - MOELLER P1-32/M4/K1-PG P1-32/M4/K1-PG 172874 Y7-172874 EATON ELECTRIC Main switch, 3 pole, 32 A, Emergency stop function, Lockable .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/M4/K1-PG 172874 Y7-172874 EATON ELECTRIC Main switch, 3 pole, 32 A, Emergency stop function, Lockable ..

P1-32/M4/K1-PG

172874

Y7-172874

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 32 A, Emergency stop function, Lockable in the 0 (Off) position, rear mounting, with 400 mm metal shaft P1-32/M4/K1-PG Eaton Moeller® series P1 Main switch, P1, 32 A, rear mounting, 3 pole, STOP function, with black rotary handle and lock ring (K series), Lockable in the 0 (Off) position, With metal shaft for a control panel depth of 400 mm Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, STOP function, Fitted with: Metal shaft for a control panel depth of 400 mm, Black rotary handle and locking ring, Mounting method: Rear mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a reliable control mechanism, the Eaton Moeller P1-32/M4/K1-PG main switch is deployed in industrial machinery to safely interrupt power feeds and manage electrical circuits. Main switches allow operators to completely disconnect equipment from the mains supply prior to performing service routines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
172874
Model Code
P1-32/M4/K1-PG
EAN
4015081694532
Product Length/Depth
340 mm
Product Height
70 mm
Product Width
57 mm
Product Weight
0.305 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
