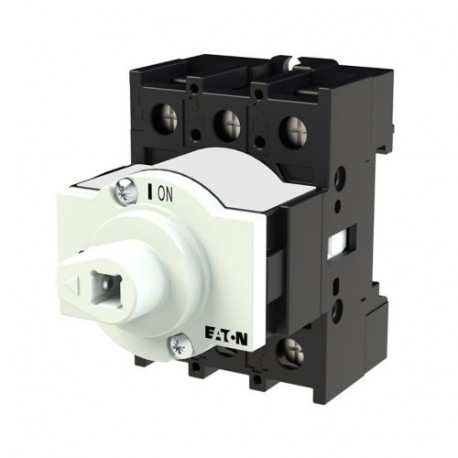

EATON - MOELLER P1-25/XM P1-25/XM 172834 Y7-172834 EATON ELECTRIC Main switch, 3 pole, 25 A, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/XM 172834 Y7-172834 EATON ELECTRIC Main switch, 3 pole, 25 A, rear mounting

P1-25/XM

172834

Y7-172834

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 25 A, rear mounting P1-25/XM Eaton Moeller® series P1 Main switch, P1, 25 A, rear mounting, 3 pole Main switch, P1, Rated uninterrupted current (Iu): 25 A, Mounting method: Rear mounting, Number of poles: Three-pole, Degree of Protection: NEMA 1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
172834
Model Code
P1-25/XM
EAN
4015081694174
Product Length/Depth
75 mm
Product Height
70 mm
Product Width
49 mm
Product Weight
0.13 kg
Certifications
CE
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL 60947-4-1
UL File No.: E36332
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
CSA File No.: 012528
IEC/EN 60947
CSA
CSA Class No.: 3211-05
UL
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 172834 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 25 A
Rated permanent current at AC-23, 400 V (EF011777) 25 A
Rated permanent current at AC-21, 400 V (EF009165) 25 A
Rated operation power at AC-3, 400 V (EF001364) 7.5 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 13 kW
Switching power at 400 V (EF009166) 13 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) Yes
Colour control element (EF007167) Other
Type of control element (EF006976) Other
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 1
Width (EF000008) 49 mm
Height (EF000040) 70 mm
Depth (EF000049) 75 mm
