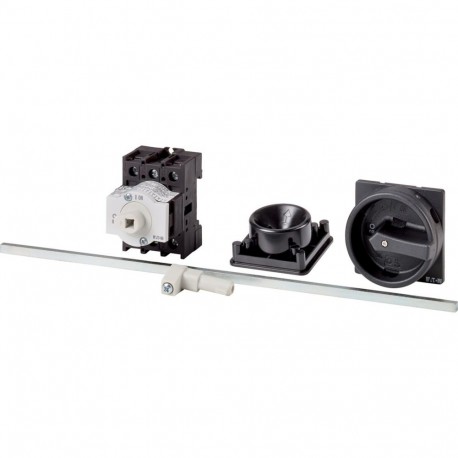

EATON - MOELLER P1-25/M4/SVB-SW P1-25/M4/SVB-SW 172876 Y7-172876 EATON ELECTRIC Main switch, 3 pole, 25 A, STOP function, Lockable in the 0 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/M4/SVB-SW 172876 Y7-172876 EATON ELECTRIC Main switch, 3 pole, 25 A, STOP function, Lockable in the 0 ..

P1-25/M4/SVB-SW

172876

Y7-172876

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 25 A, STOP function, Lockable in the 0 (Off) position, rear mounting, with 400 mm metal shaft P1-25/M4/SVB-SW Eaton Moeller® series P1 Main switch, P1, 25 A, rear mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, With metal shaft for a control panel depth of 400 mm Main switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: Interlockable, STOP function, Fitted with: Black rotary handle and locking ring, Metal shaft for a control panel depth of 400 mm, Mounting method: Rear mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The P1-25/M4/SVB-SW Eaton Moeller main switch offers dependable load-break switching and isolation capabilities for machinery control panels. Main switches are vital safety assets in industrial plants, allowing operators to interrupt electrical supply lines effectively before performing service work. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 50 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
172876
Model Code
P1-25/M4/SVB-SW
EAN
4015081694556
Product Length/Depth
340 mm
Product Height
70 mm
Product Width
72 mm
Product Weight
0.315 kg
Certifications
CSA
CSA File No.: 012528
UL
CSA-C22.2 No. 94
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL 60947-4-1
UL Category Control No.: NLRV
UL File No.: E36332
IEC/EN 60947
CE
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
